STC | SMaRT AFIX logo  SMaRT AFIX AFIX User/AFIX Coordinator User Guide

Manage Users (Independent Partners)

Independent state users with the SMaRT AFIX Manage Users Page role can access the Manage Users page to enable/disable users, assign state/provider roles, and reset passwords.

Note that changes to a user's first name, last name, or email address must occur in the source system or within Keycloak. New users created in the source system do not have access until the next day.

The overall user roles in SMaRT AFIX - and the corresponding Keycloak roles, if applicable - for independent states are as follows:

User Role Description

Admin User

User has direct access to Keycloak (for example, an IT/deployment manager for the state). (See Assign the Management User Role in Keycloak.)

Management User

User has access to the Manage Users page in SMaRT AFIX, where they can enable/disable (activate/inactivate) users, assign state/provider roles, and reset passwords. (See Assign the Management User Role in Keycloak.) (Keycloak role: ManageUsers.)

AFIX User/State User

User has access to the SMaRT AFIX application and to Master Rate Comparison. User can run reports and patient lists for all providers, as well as generate exports for the CDC AFIX online tool. (Keycloak role: State.)

Provider/Organization User

User has access to the SMaRT AFIX application and can run reports for all providers associated with their assigned organization. (Keycloak role: Provider_Org.)

Provider User (Facility)

User has access to the SMaRT AFIX application and can run reports for their assigned provider (organization/facility). (Keycloak role: Provider.)

SMaRT AFIX Manage Users Page

User has access to the Manage Users page (to enable access for other users) and to the Provider Groups pages in SMaRT AFIX (to create/edit provider groups. See below and Manage Provider Groups).

SMaRT AFIX Provider groups Content (data) Security

User has access to the SMaRT AFIX application and to Master Rate Comparison. User can run reports and patient lists, and generate exports for the CDC AFIX online tool, for the facilities and organizations within the Provider Group to which the user is assigned.

Manage Users in SMaRT AFIX

The Manage Users page is only available to independent state users with the SMaRT AFIX Access Manage Users and SMaRT AFIX Manage Users Page roles. See Assign the Management User Role in Keycloak for more information on how to assign these roles to users. Note that users who access this page cannot edit the details for themselves or for other users with the Manage Users role; changes to users with this role must be made in Keycloak.

To open the Manage Users page, click on the user image icon located on the far right side of the header bar, then click on the Manage Users link. The Manage Users page opens.

Manage Users link on user icon's drop-down menu

On the Manage Users page, search for a specific user by entering a few characters of the user's first name, last name, username, or email address, and then click Search. The search results section displays the following fields and options:

Field/Option Description

Username

The username for the specified user.

First Name

The user's first name.

Last Name

The user's last name.

Email

The user's email address.

Enabled

Toggle the switch to activate (enable) a user. A user is active when the toggle switch is on the right side and blue in color (Toggle switch in the On position). This switch controls a user's ability to access SMaRT AFIX - (enabled allows access; disabled revokes access).

Password Reset

To reset a password, click the Send Email button. An email is sent to the user's listed email address with information on how to reset their SMaRT AFIX password. Users can also reset their password by clicking Forgot Password? link on the login page. Note that a valid email address must be in the user's IIS record for the email to be sent successfully.

Assign the Management User Role in Keycloak

Users with the Admin User role (for independent states) can assign the Management User role to one or more users from within Keycloak by following these steps:

  1. Log in to Keycloak.
  2. Click the Manage > Users menu link to open the Users page.
  3. Search for a user: enter a few characters of the user's first name, last name, or username and click the magnifying glass (or press Enter on the keyboard).
  4. Locate the user in the search results and click their ID link to open their profile page.

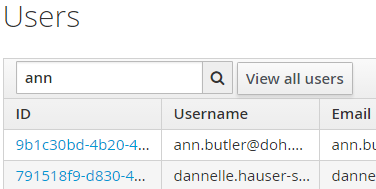

    Example list of users in Keycloak
  5. Click the Role Mappings tab.
  6. In the Available Roles box, click ManageUsers in the list and then click the Add selected button. The role moves to the Assigned Roles and Effective Roles boxes. (Note that users also need the access_afix role in order to have overall access to the SMaRT AFIX application.)

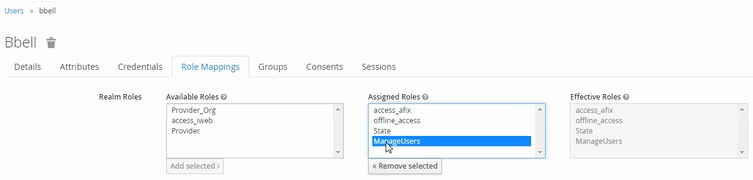

    Example Role Mappings tab section in Keycloak

The following table may be helpful in deciding which Keycloak roles to assign to users in Independent implementations:

I am a: I want to: I need the following Keycloak roles:
State User / AFIX Level User (for an Independent partner)
  • View Master Rate Comparison Report
  • View coverage rate reports for all facilities
  • View patient lists for all facilities
  • Grant users access to SMaRT AFIX
  • Create/edit provider groups by accessing the Provider Groups page
  • Access AFIX
  • State Level Permissions
  • Access Manage Users Page
State User / AFIX Level User (for an Independent partner)
  • View Master Rate Comparison Report
  • View coverage rate reports for any facility
  • View patient lists for any facility
  • Access AFIX
  • State Level Permissions
AFIX Assessor with Limited Facility Access (for an Independent partner)
  • View Master Rate Comparison reports for all providers
  • View coverage rate reports for selected assigned facilities (provider groups)
  • View patient lists for selected assigned facilities (provider groups)
  • Access AFIX
  • Provider Level Permissions
  • Provider (Org and Fac) Groups Content (data) Security
Provider / Facility / Organization Level User (for an Independent partner)
  • View coverage rate reports for my own organization / facilities
  • View patient lists for my own organization / facilities
  • Access AFIX
  • Provider Level Permissions
  • Organization Provider Content (data) Security
